PRESENTATION

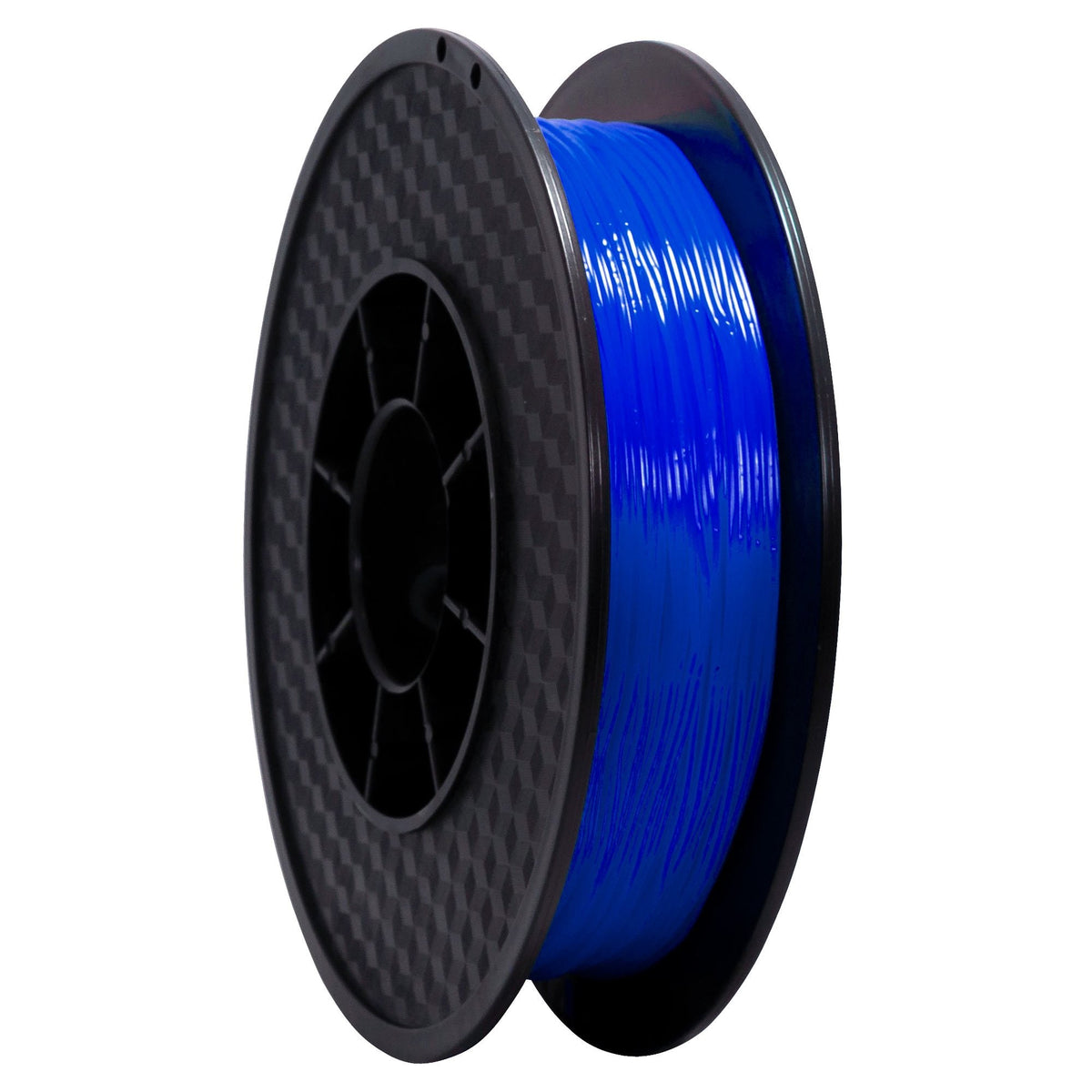

Our TPU filament Blue 95Ais ideal for creating 3D printsthat are flexible and deformable. It is a filamentresistant to grease, oils, and abrasion, making it a suitable choice for both hobbyists and professionals in 3D printing.
Please note that it is necessary to use a printer equipped with a Direct Drive extruder to minimize the distance between the extruder and the print head, keeping it as short as possible.
There are different hardness levels for filaments called shore:
-
Shore A : This scale is mainly used to measure the hardness of soft elastomer materials, such as TPU. The lower the Shore A number, the softer and more elastic the material.
-
Shore D : This scale is used to measure the hardness of more rigid materials, such as hard plastics. A higher Shore D number indicates greater hardness and less elasticity.
- Soft < Shore 85A < Shore 95A < Shore 64D < Rigid
This filament is compatible with all 3D FDM printers available on the marketwith a direct drive.
Please note that color variations may occur between different manufacturing batches. Also note that a color difference may appear between your screen and the product due to your screen's color calibration.
TechnicalInformation
|
Color |
Blue |
Diameter |
1.75mm |
|
Shore |
95A |
Compatible Bowden |
No |
|
Bed Temp° |
0 - 60°C |
Nozzle |
0.5mm |
|
Nozzle Temp°220 - 250°C |
Print Speed |
20-60mm/sPrecision |
+/-0.05mm |
|
Tg |
(-50) - (-10)°C |
Empty spool weight |
150g |
|
Color Code |
186 |
Density |
1.20g/cm³ |
|
Wanhao Code |
0211032 |
