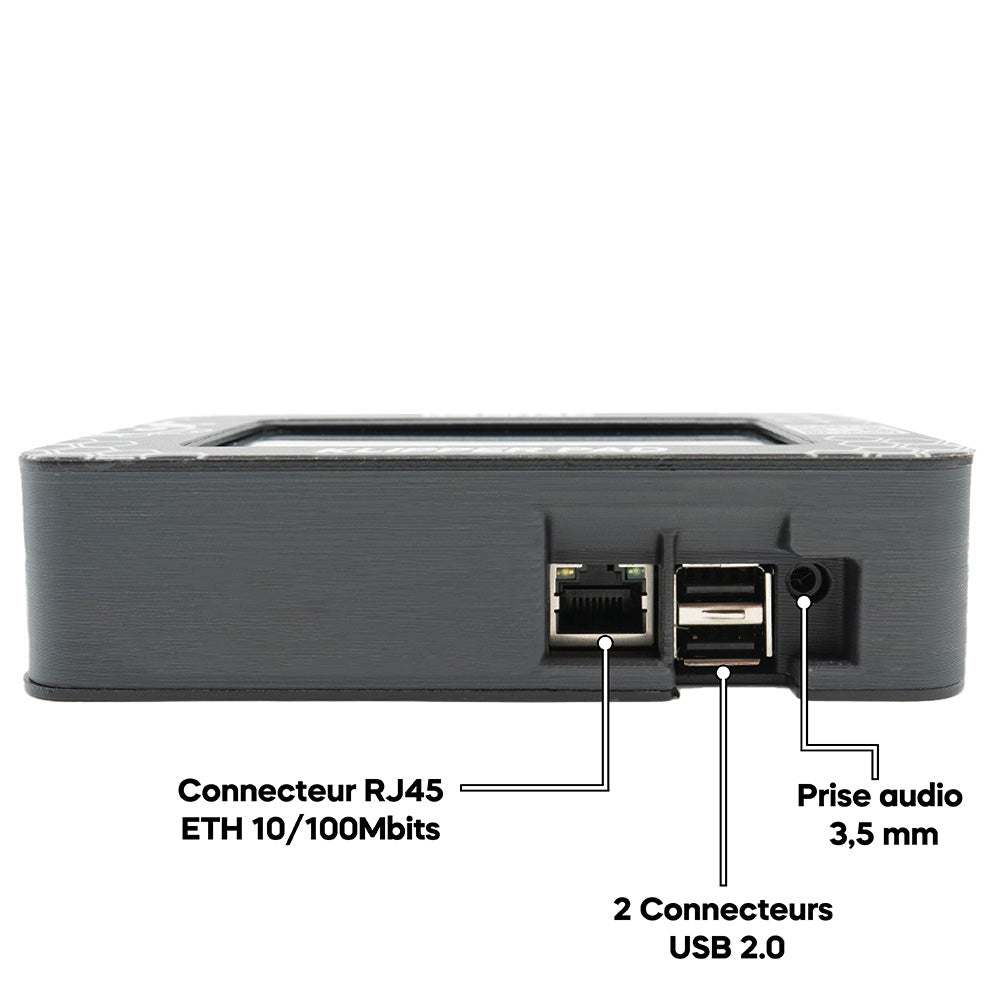

New 3D Printer D12 500 PRO MAX + WANHAO SMART PAD INCLUDED

Notable information:

• FEATURES AN AUTO-LEVELING SYSTEM (3D-TOUCH)

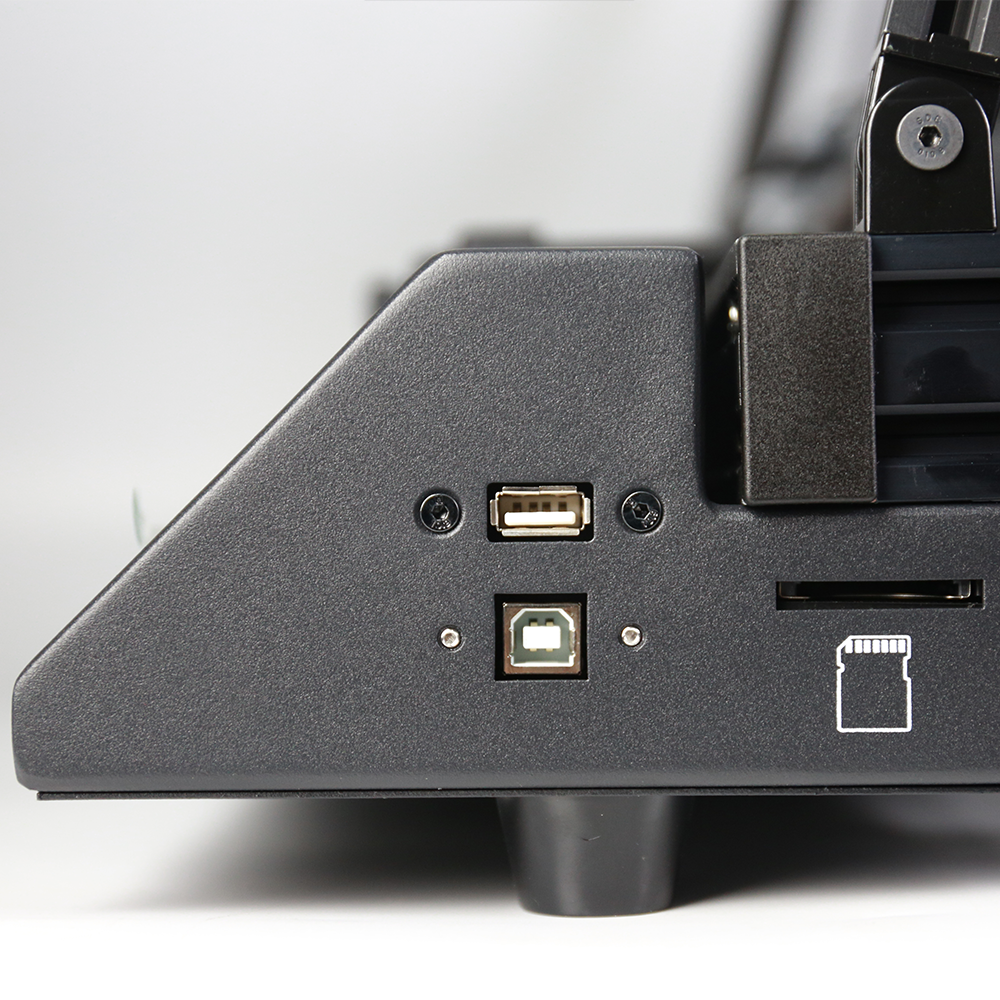

• Includes a 32Bit motherboard (ultra-quiet) and a USB port

Overview

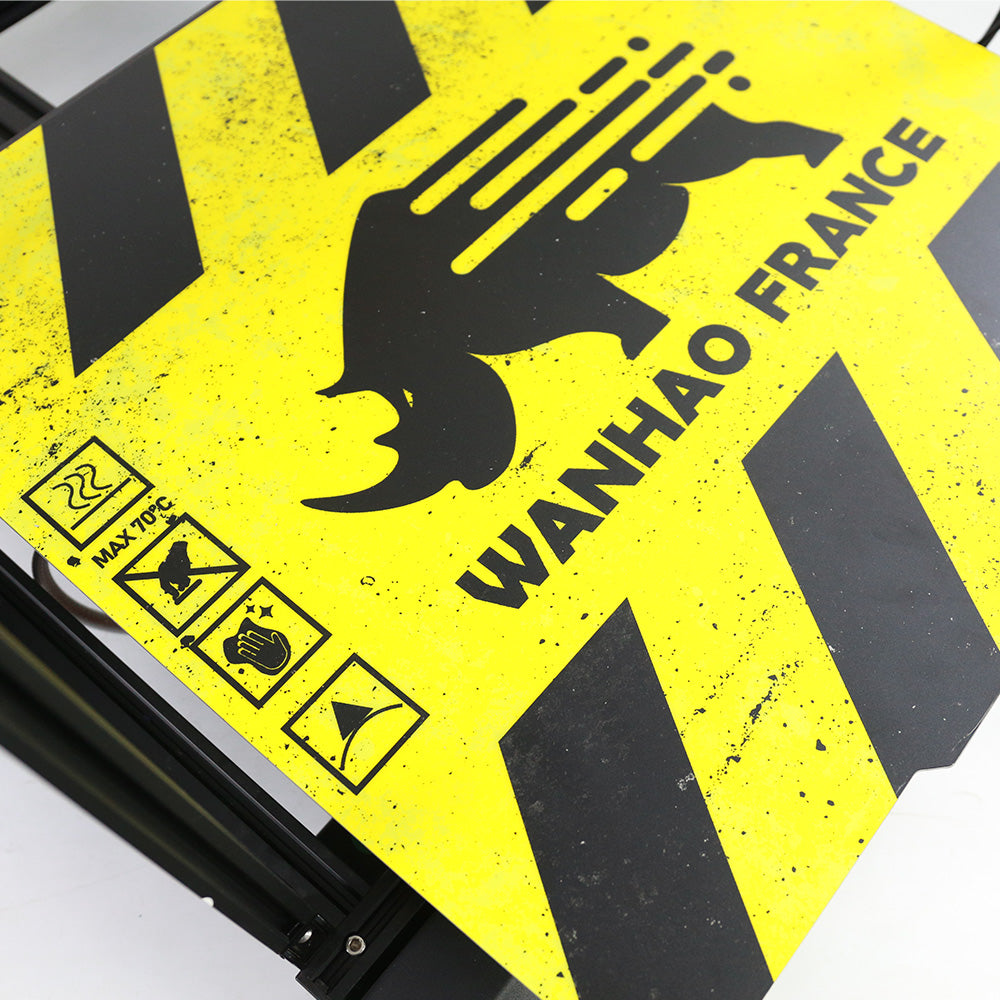

The Duplicator 12 / 500 PRO MAX is the latest FDM 3D printer model (filament deposition) from Wanhao, designed to suit both beginners and professionals. It offers a compact format with a generous print volume of 500x500x500 mm, ensuring exceptional print quality. It is equipped with many features aimed at making the printing process reliable, including a filament runout sensor, print resume, magnetic bed, touchscreen, and much more.

This machine is available in Direct Drive, but it is also convertible to dual extruder, allowing you to mix two different types of filaments within the same print. However, please note that managing two filaments simultaneously is more suitable for experienced users.

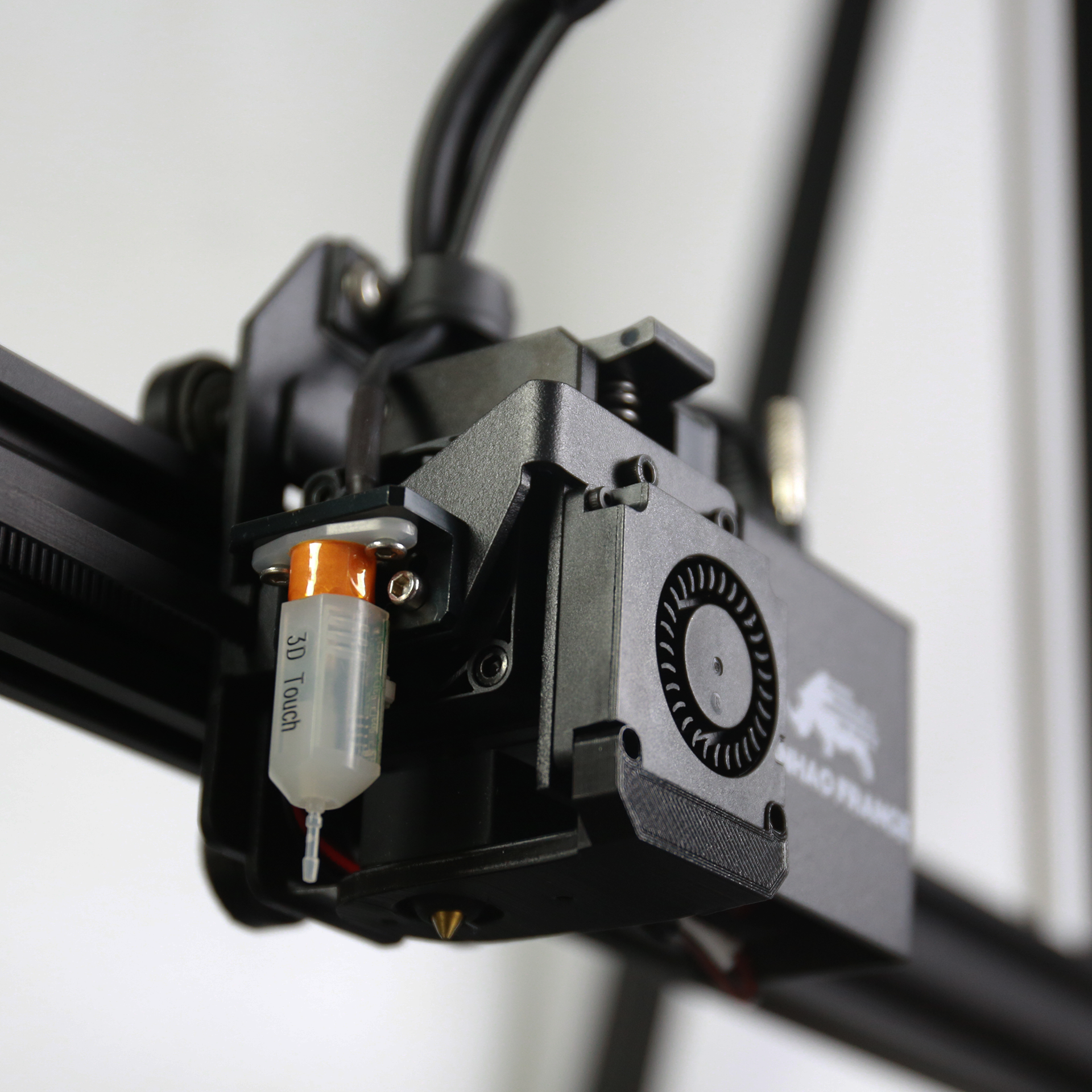

Anauto-leveling system (3D-touch) has been added to ensure the best possible first layers and thus improve the printer's reliability.

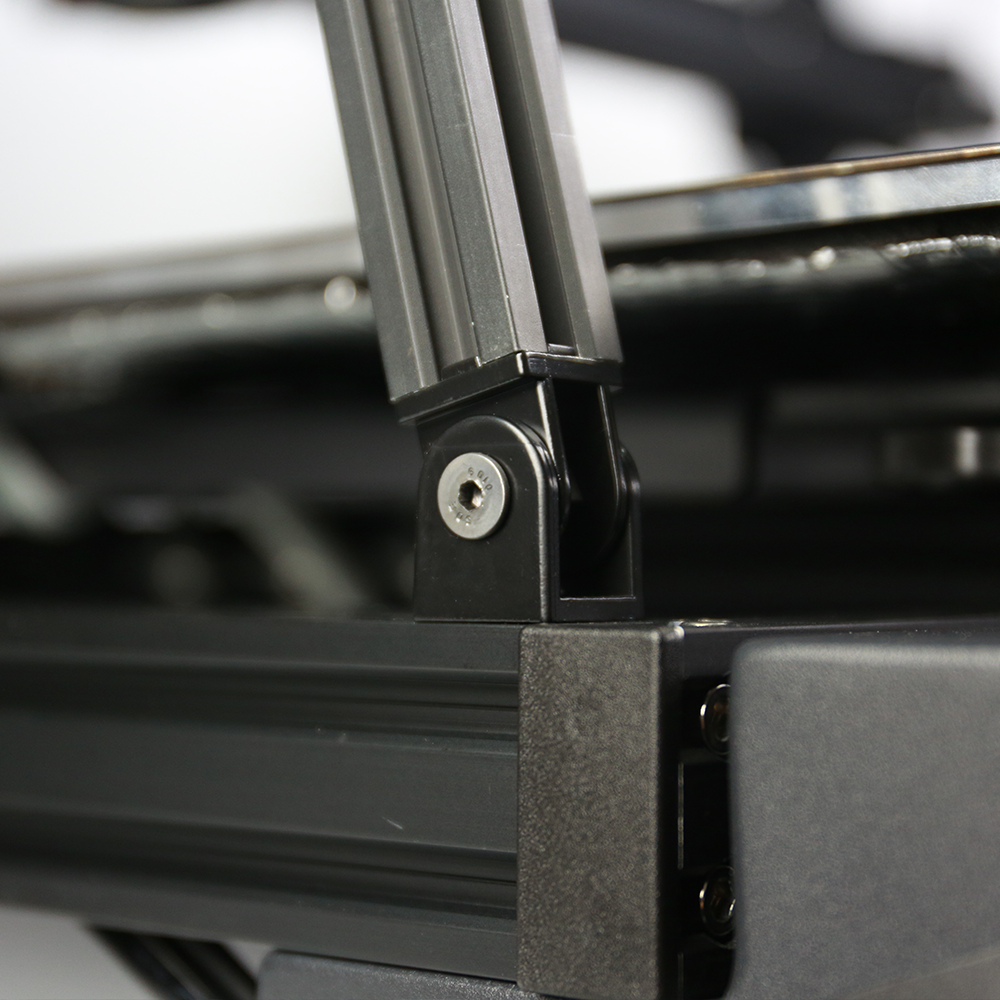

The printer comes pre-assembled, which means you only need to attach the gantry to the base, fix the spool holder and extruder, and connect a few cables together. To guide you through this step, we provide our customers with a complete assembly guide in French.

Print quality

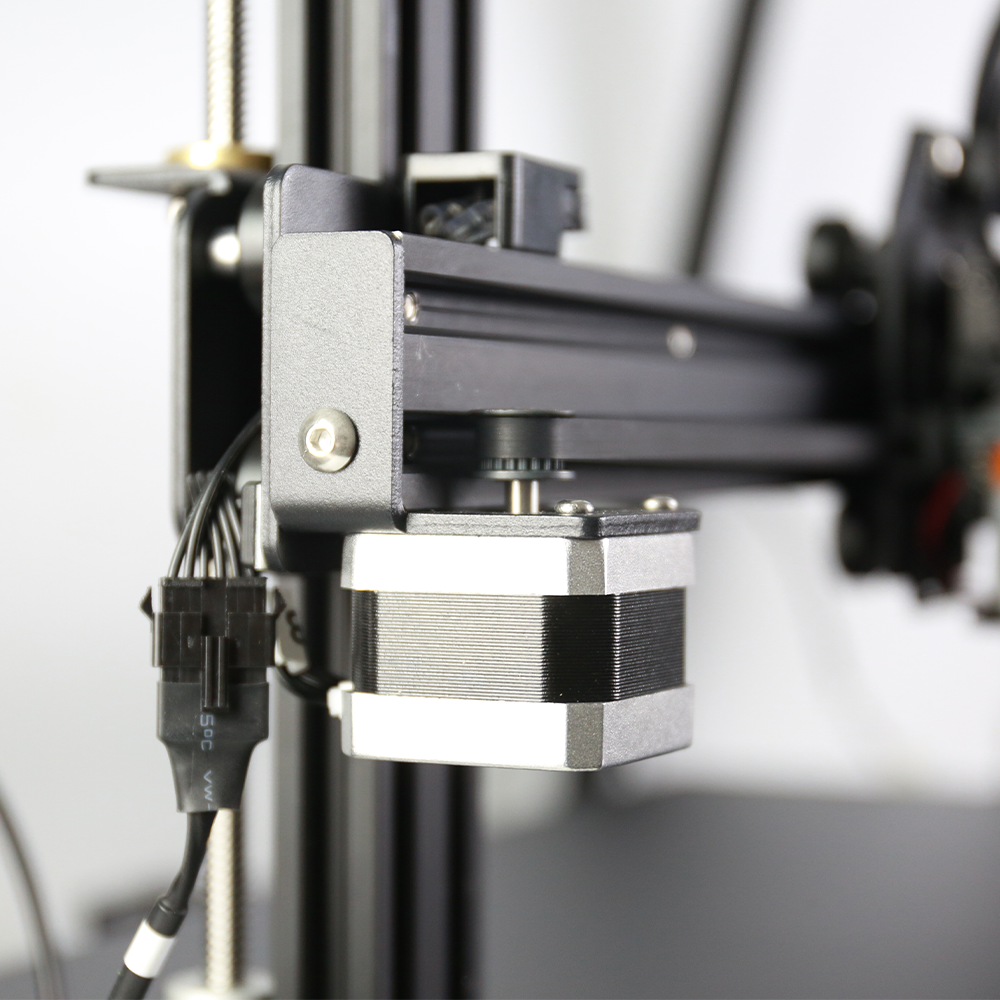

The Duplicator 12 / 500 PRO MAX is powered by an MKS 32-bit motherboard paired with high-precision, quiet stepper motors for horizontal movements, type TMC 2209. You will achieve smooth surfaces and perfectlyrendered details.

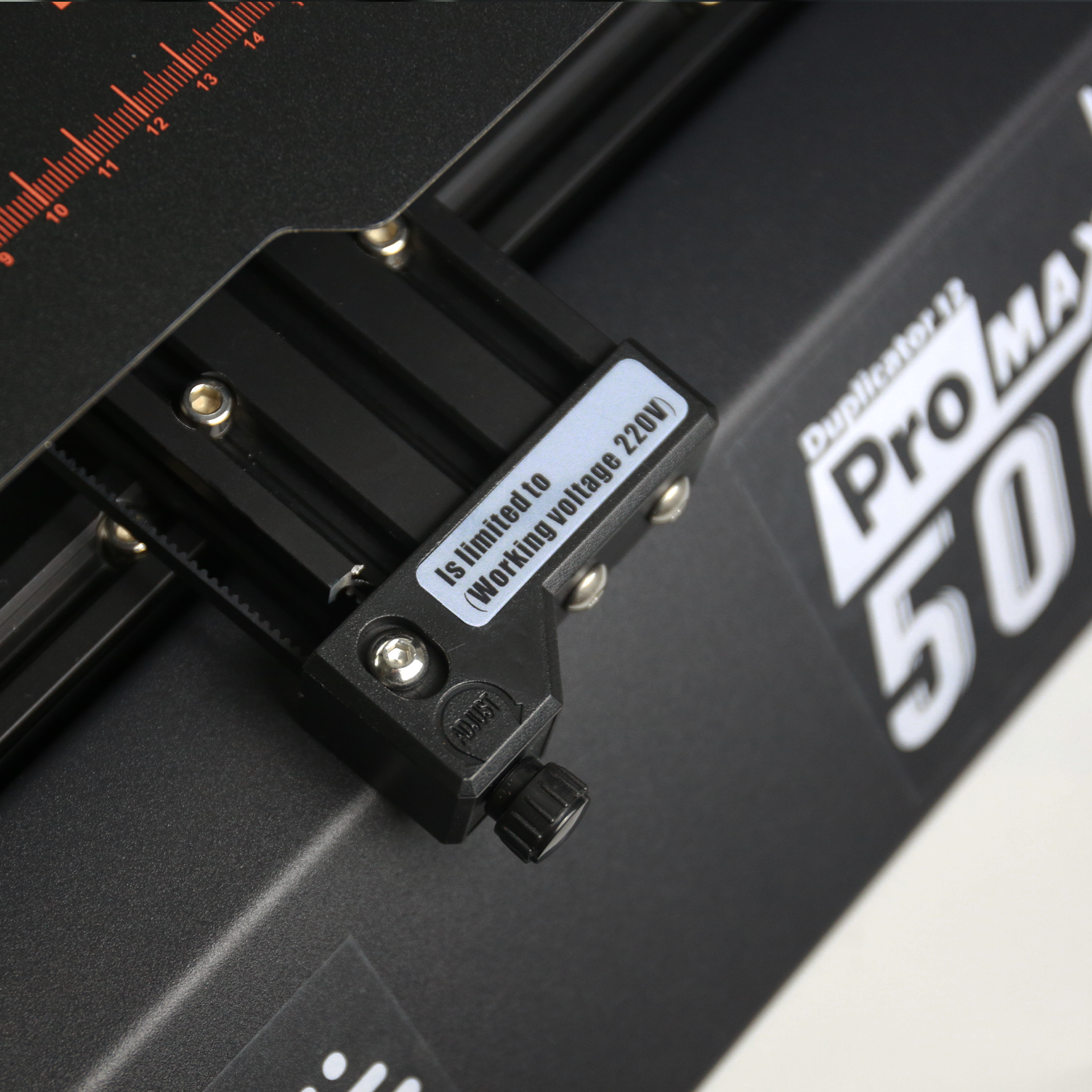

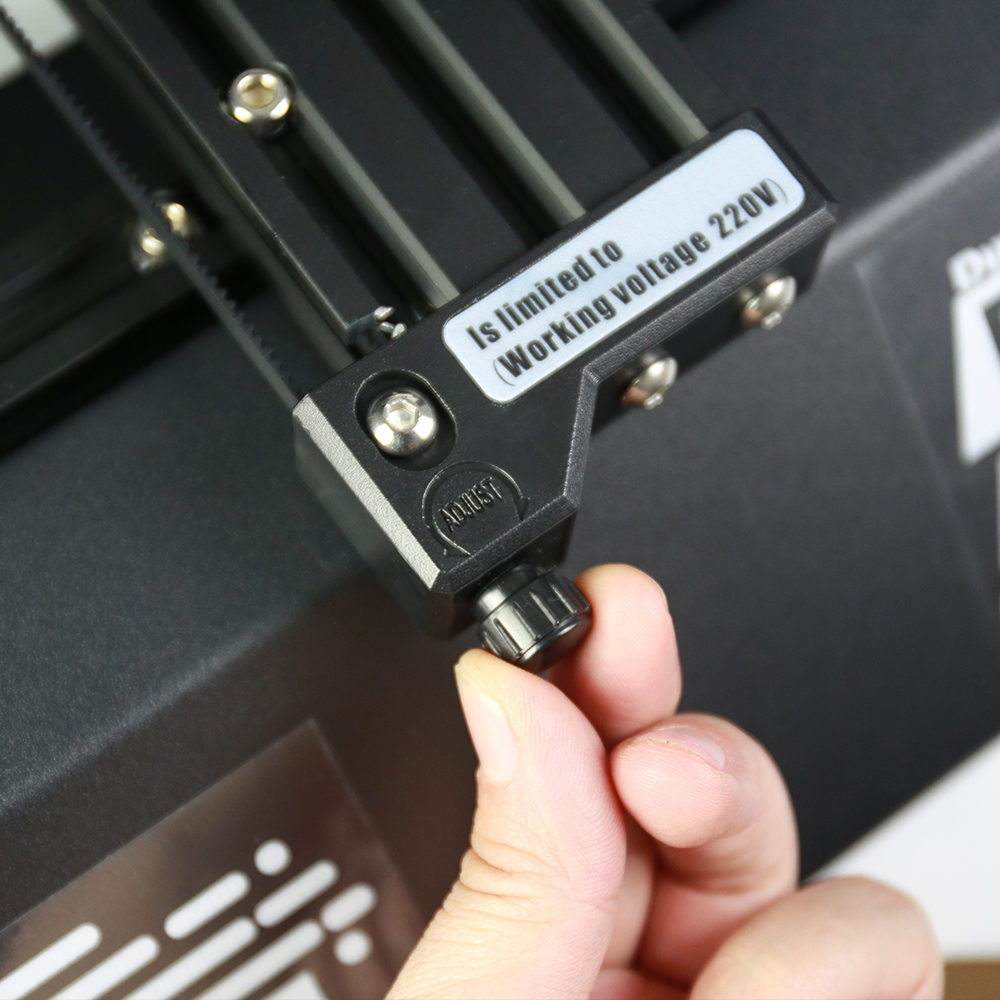

Thanks to its belt tensioning system, "ghosting" effects are almost nonexistent. You can print layers ranging from 0.08 mm to 0.28 mm with the original 0.4 mm nozzle, covering a wide range of applications, whether for functional or artistic parts.

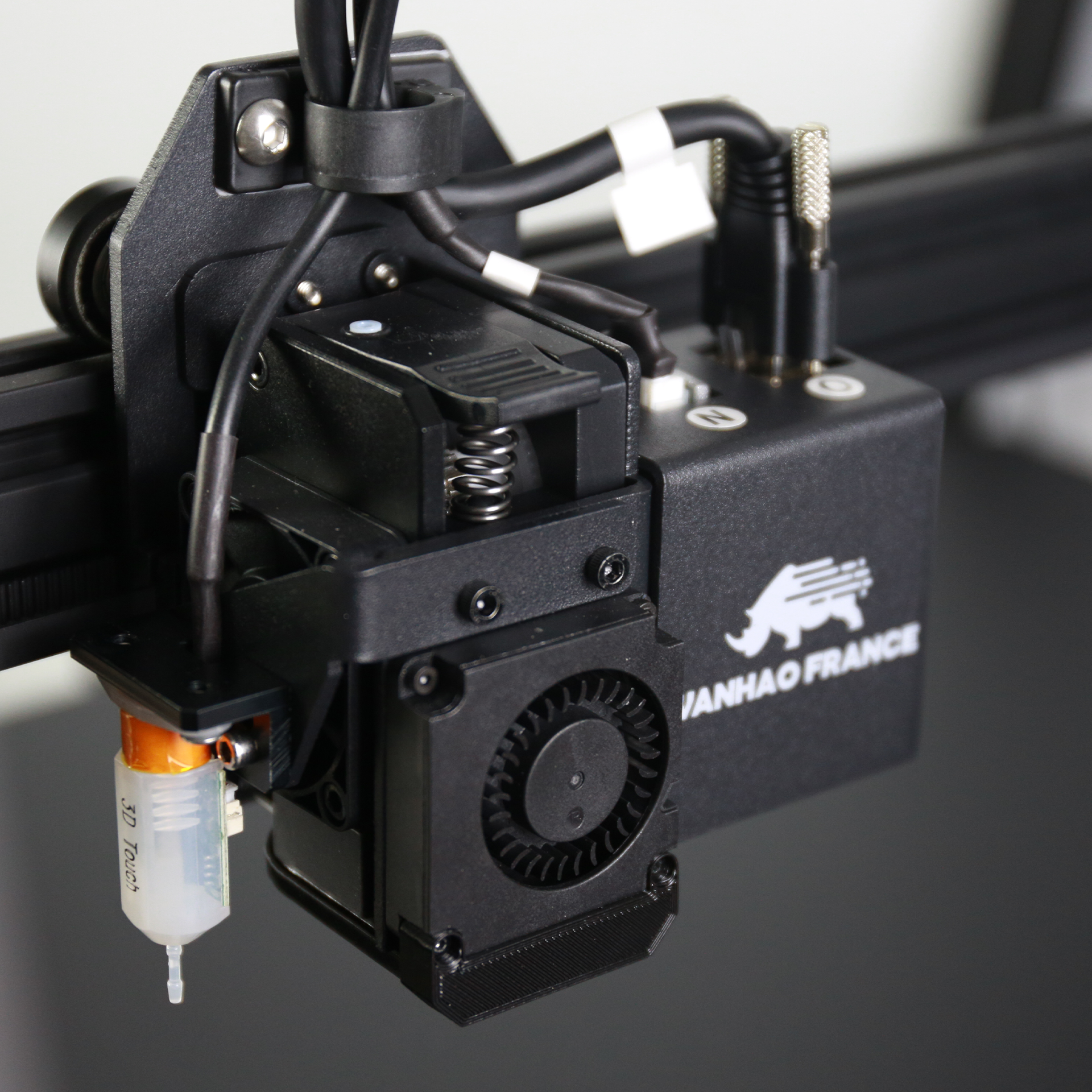

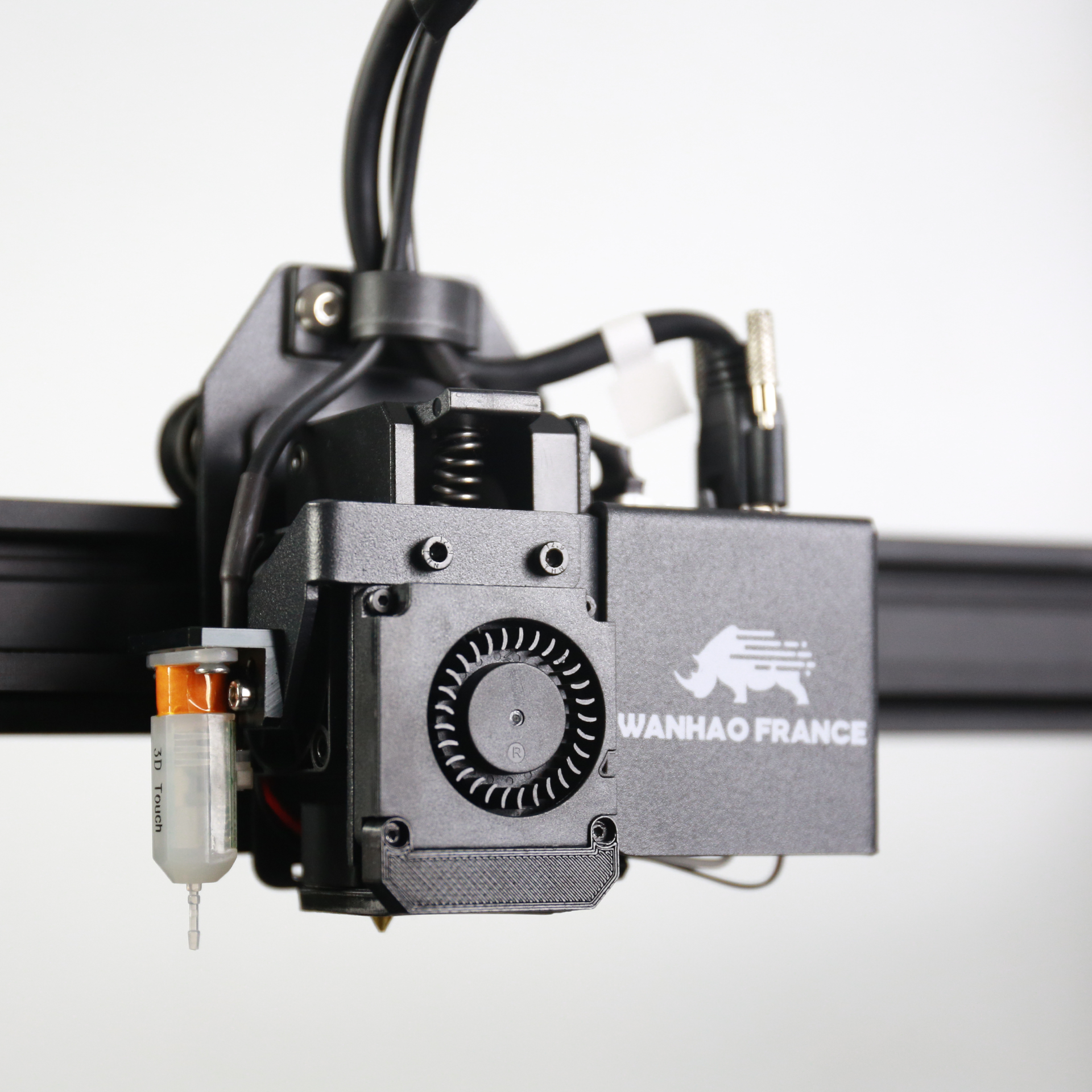

The extrusion system is based on Titan technology and BMG (in Direct Drive), offering high torque to handle all types of filaments.

Although a recommended print speed of 60 mm/s is optimal, the Duplicator D12 500 PRO MAX can push its limits and allow prints at 100 mm/s or more. Its lightweight head results in very low inertia, and the precision electronics perform all movement calculations without slowing down.

Single or dual extrusion (optional)

The Duplicator 12 500 PRO MAX is available in two versions: single Direct Drive extrusion and dual extruders, allowing you to print two different types of filaments in the same print. This offers a variety of options for your creations, whether you want to use two different colors or two distinct materials.

The Y-shaped filament collection system located before the nozzle makes it easier to guide the filament to be printed. However, please note that this option requires an understanding of FDM printers and mastery of filament retraction settings.

We recommend the Dual Extruder model primarily to experienced users, or to beginners wishing to upgrade to this option after gaining experience. It is also possible to start with the Single Extruder model and later add the kit to upgrade to Dual Extruder.

TECHNICAL INFORMATION
