3D Printing Starter Pack:
Duplicator 12 / 230 M2 PRO
Notable information:
-
D12 230 PRO MONO: Printerpre-equipped to switch to 2 colorswithout needing to open the machine
-
D12 230 PRO DUAL: Complete printer and alreadyready to print in 2 colors(recommended for advanced users or those who wish to become so). If you choose this version,you will receive a gift pack including: 1 PLATO 170 wire cutter, a screwdriver kit for disassembling the extrusion head, spare V-slot wheels, etc…(Gift pack value: 25€!!!)
- To get started right,we offer you 4 hours of trainingonline
-
Everything you need to get started is included in this pack
-
You can also consultourinformation brochureto learn more about your printer (in English only)
Printer overview

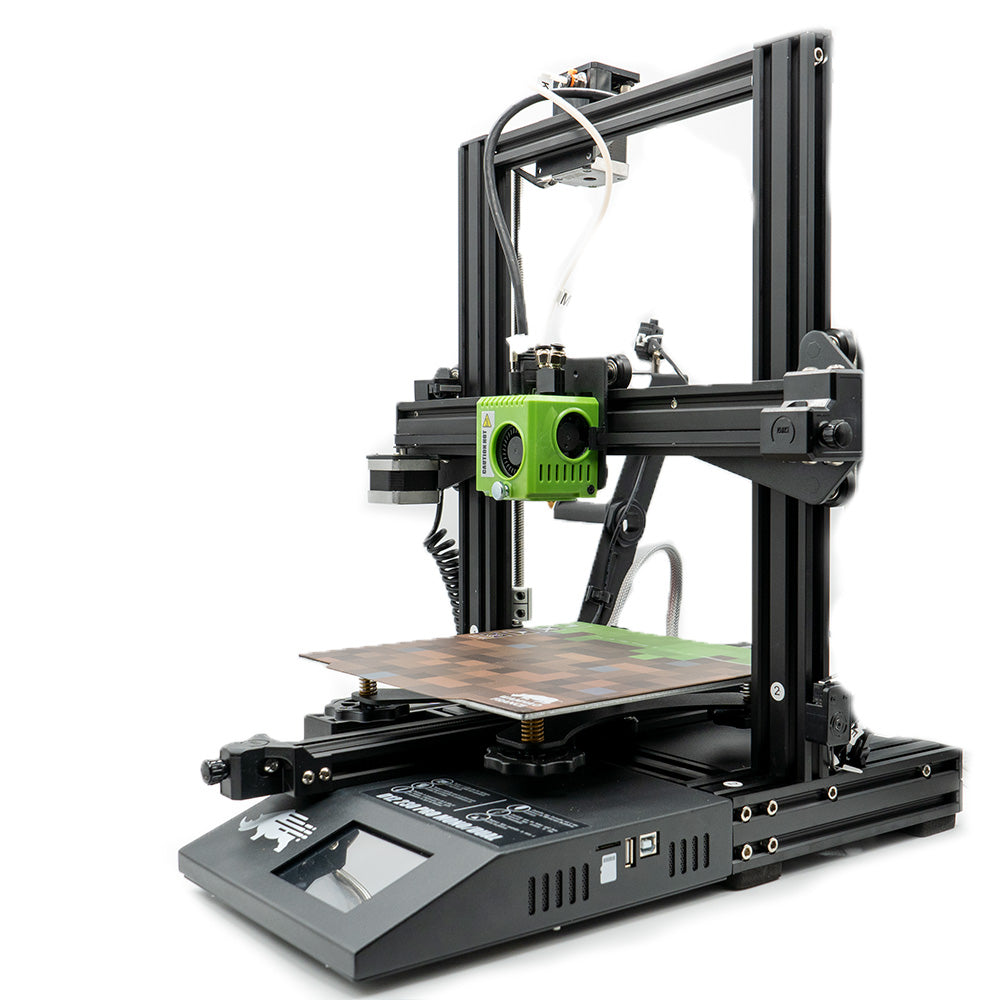

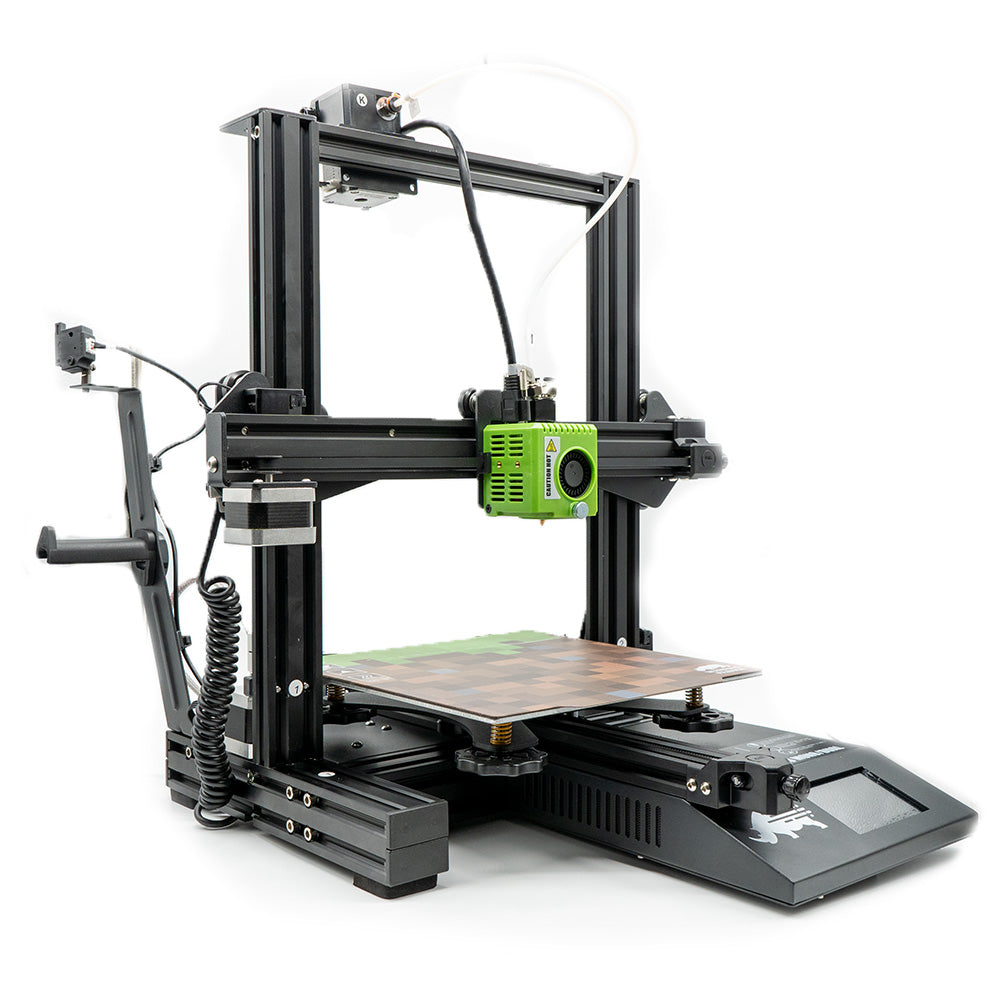

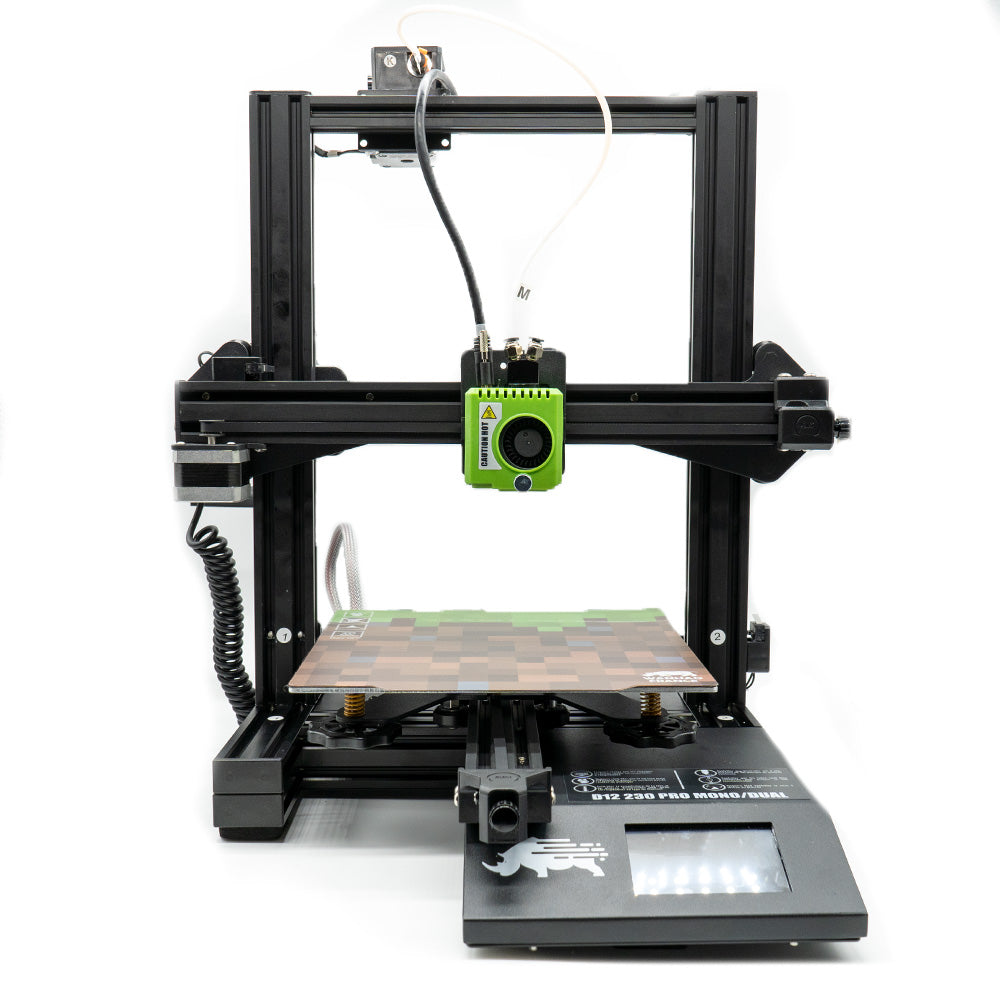

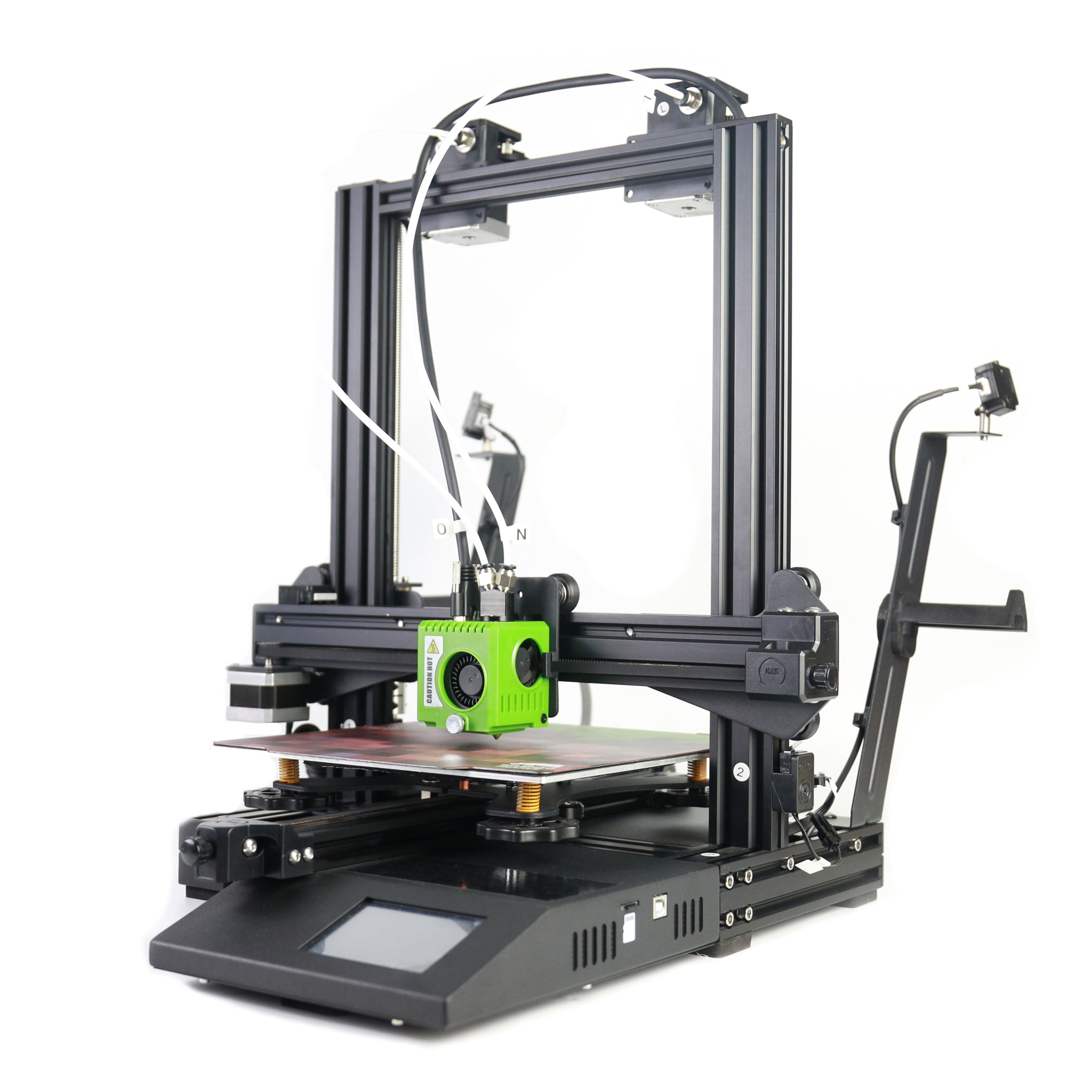

Our Wanhao D12 / 230 M2 PRO 3D printer is a versatile and precise production tool, designed to meet your prototyping and manufacturing needs. Thanks to its advanced technology and exceptional print quality, it allows you to create high-quality 3D objects with millimeter precision. In addition, it is available in single or dual color printing.
The Wanhao D12 / 230 M2 PRO features a large print area of 23 x 23 x 24 cm, offering great flexibility to print objects of different sizes and shapes. It is equipped with a very intuitive color touchscreen LCD, allowing you to easily control the printing and monitor your project progress in real time. Additionally, it is Wi-Fi compatible and has a USB port, offering you convenient daily use.
The Wanhao 3D printerD12 / 230 M2 PROis compatible with a wide range of materials, including PLA, PETG, and TPU, giving you a great variety of choices for your printing projects. Moreover, it comes pre-assembled, allowing you to start printing quickly and easily. Its intuitive control software and clear assembly instructions make it user-friendly. It is also energy-efficient and environmentally friendly.
In summary, the Wanhao 3D printerD12 / 230 M2 PROis a versatile and reliable production tool that will allow you to bring your 3D printing projects to life quickly and precisely, whether you choose one or two filament colors. Its exceptional print quality, ease of use, and practical features make it the ideal tool for all types of projects, whether personal or professional.
Starter pack overview
We present to you a starter pack with the essentials to get started in 3D printing. This starter pack consists of the following components:
- A printer: Wanhao D12 / 230 M2 PRO Green (see below);

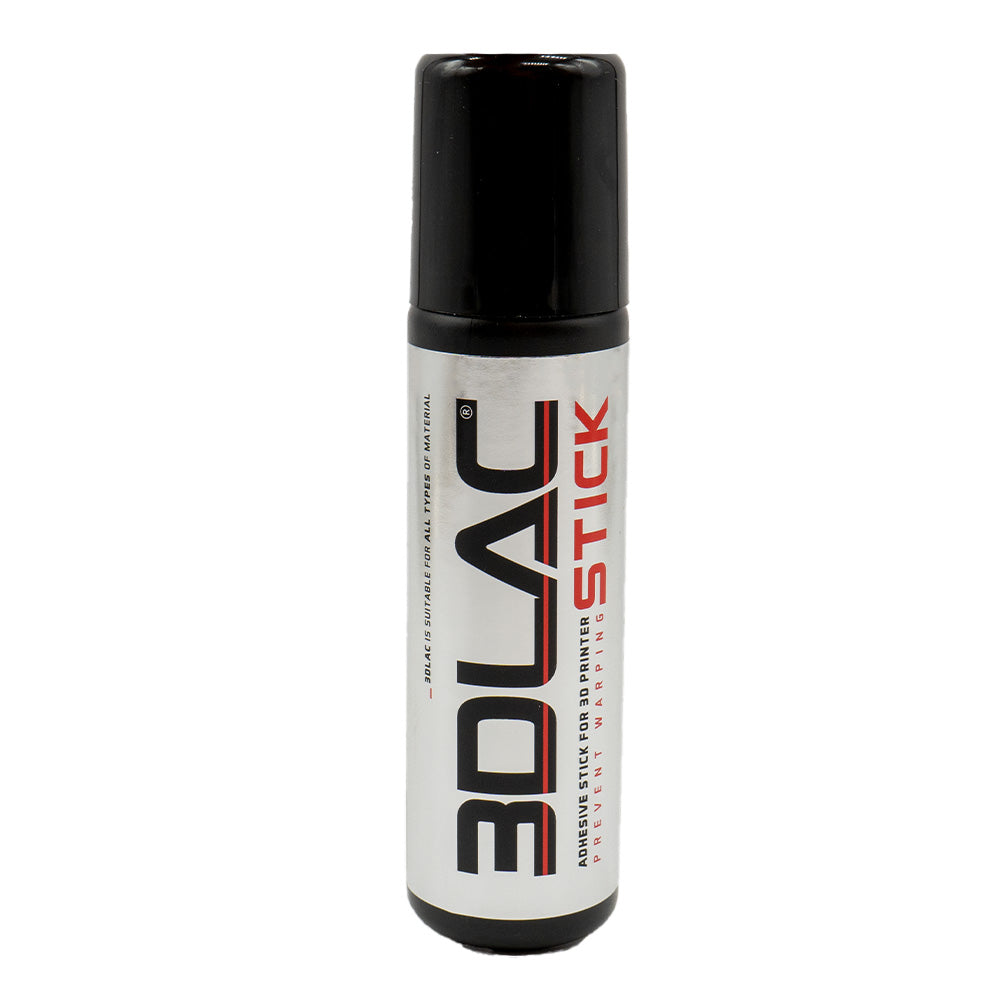

- A 3DLAC glue stick (to help the print adhere to the bed);
- A wire brush (for cleaning the nozzle);
- A precision wire cutter (to remove print supports);

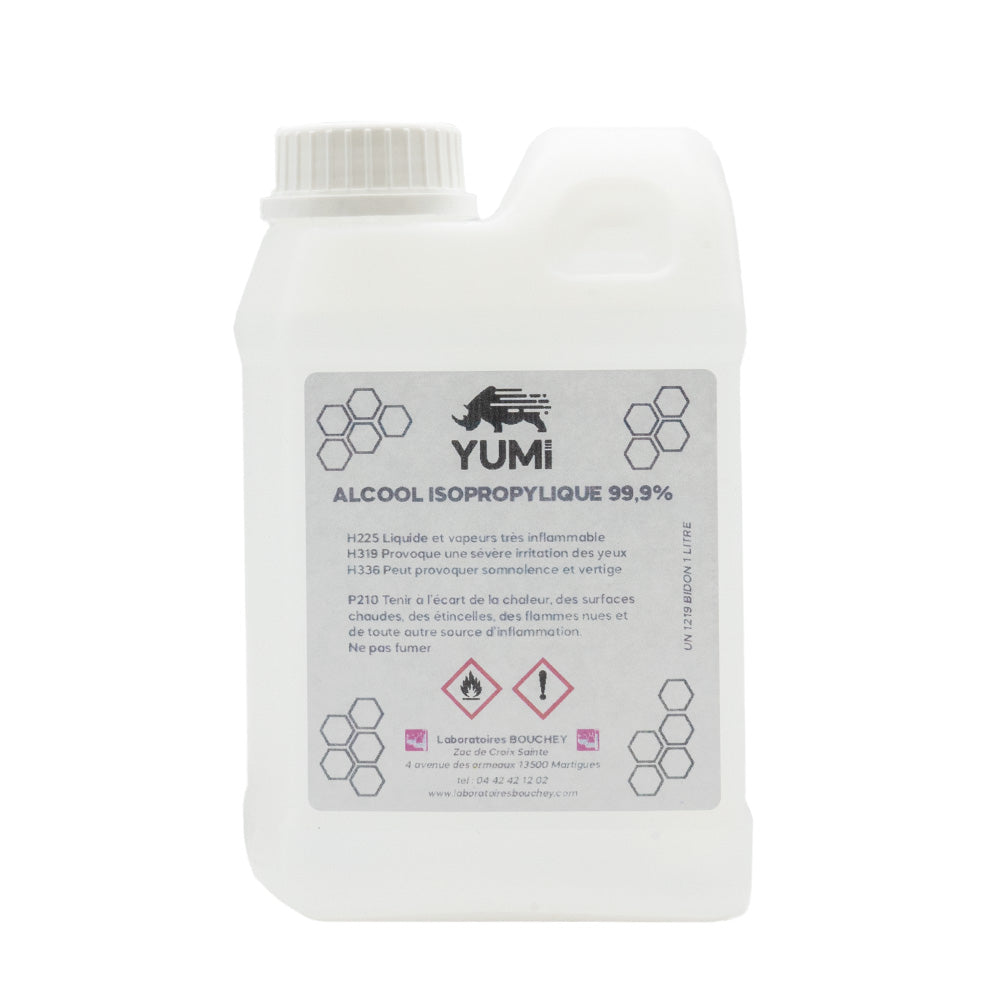

- A bottle of Isopropyl Alcohol (for cleaning the bed);

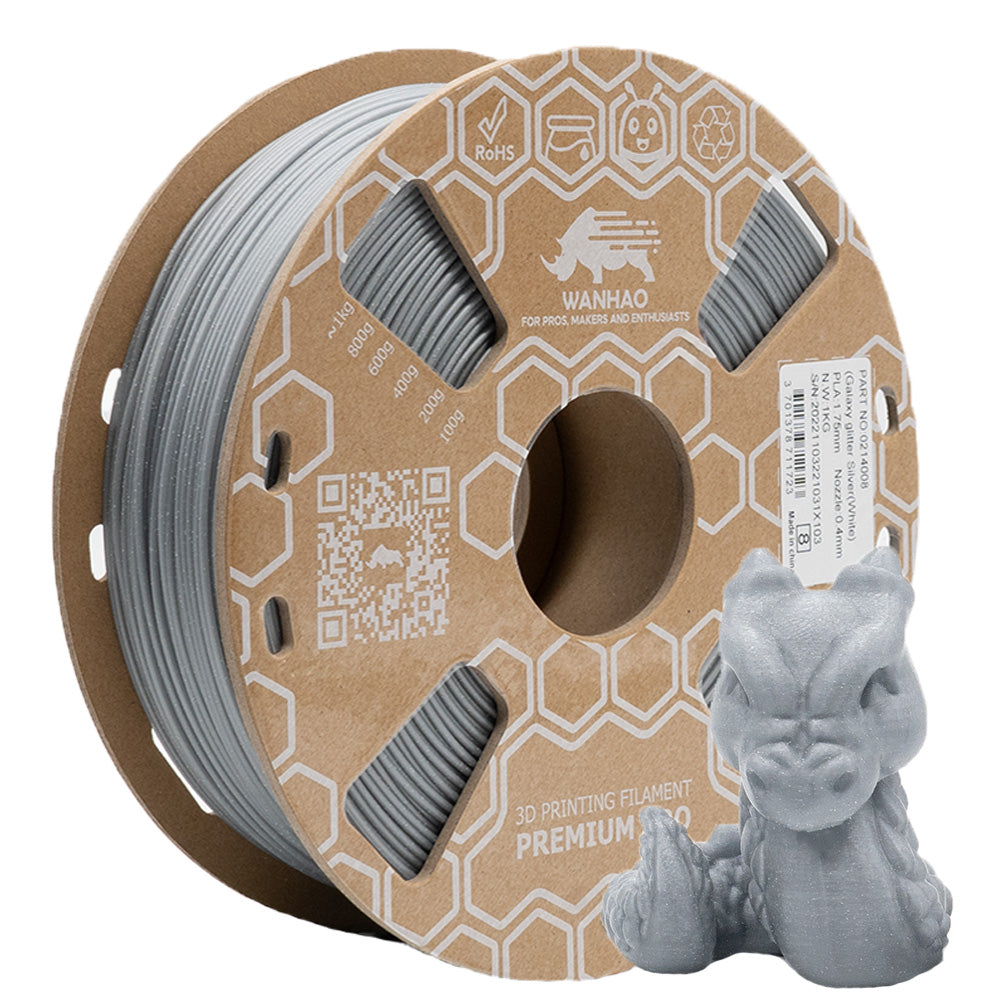

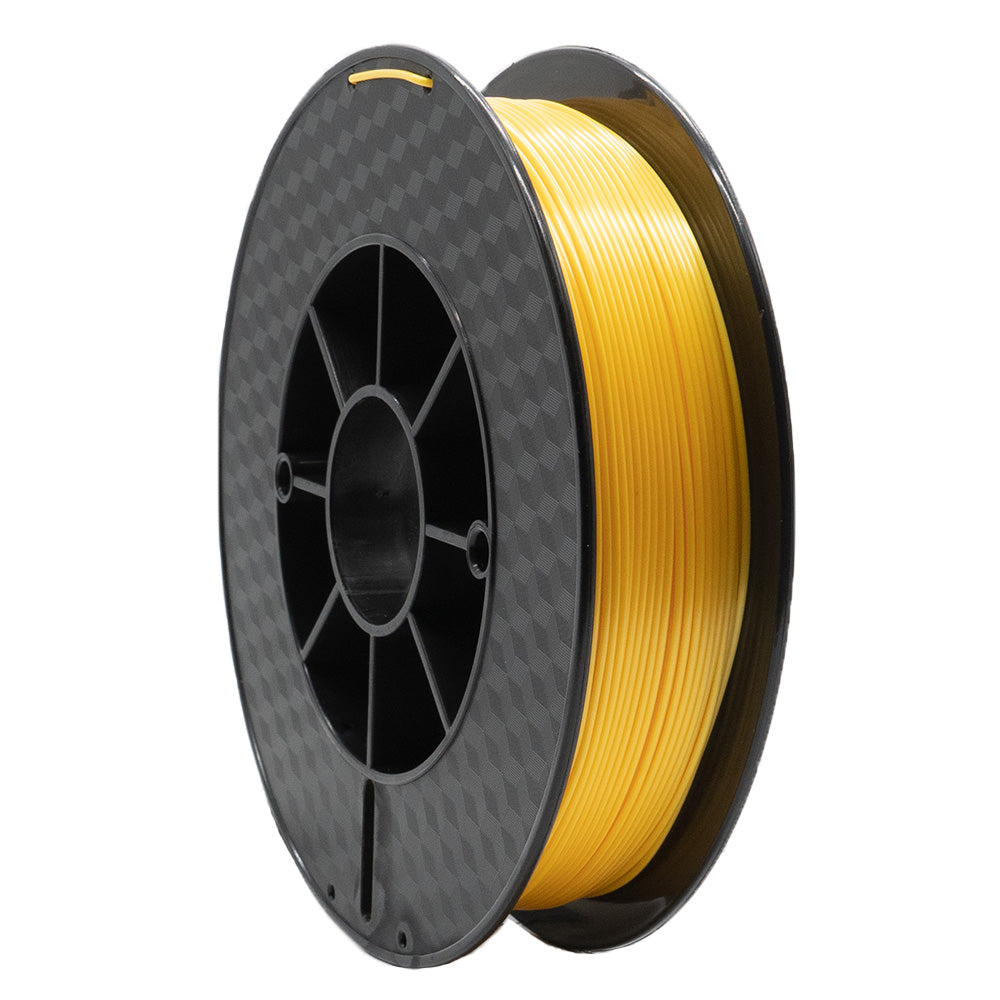

- Two spools of PLA: PLA PREMIUM WANHAO GALAXY SILVER 1Kg // PLA PREMIUM WANHAO SILK ROSE GOLD 500g
The printer is delivered pre-assembled, which means you only need to attach the gantry to the base, fix the spool holder and extruder, and connect a few electrical plugs together. In addition, we provide our customers with a complete assembly video guide in French to help you with this step.
TECHNICAL INFORMATION
|
Technology |
FDM(filament deposition) |
|
Dimensions of the assembled machine with two spools (L x W x H), dual version |
490 x 540 x 500 mm |
|
Print volume |
230 x 230 x 240 mm |
| Assembly | Pre-assembled (printer in KIT) |
|
Weight |
9 kg |
|
Print accuracy |
From 80-290 microns / 0.08-0.29mm (with 0.4 nozzle) |
|
Z positioning accuracy |
4 microns |
|
X/Y positioning accuracy |
12 microns |
| Print speed | Recommended at 60 mm/s, up to 400 mm/s |
|
Travel speed |
Recommended at 5,000mm/s, up to 10,000 mm/s |
|
Filament diameter |
1.75 mm |
|
Supplied nozzle diameter |
0.4 mm |
|
Extrusion type |
Titan type extruder in remote (Bowden type)
|
|
Extrusion temperature |
260 °C (short term) or 240°C |
| Heated bed | yes, 24V |
|
Compatible materials |
Recommended: PLA, PETG, PVA, filled PLA and PETG.
Technical filaments with enclosure recommended or advanced knowledge: TPU, ABS, HIPS, etc. |
|
Supplied software |
Cura Wanhao edition. (Compatible with Prusa Slicer, IdeaMaker, Simplify3D, Slic3r, Cura, etc.) |
|
Connectivity |
USB stick, MicroSD card, USB cable, Wifi (password limit of 17 characters) |
|
File type |
gcode |
|
OS compatibility |
Windows / Mac OS / Linux |
|
Warranty |
1 year. Parts and labor in our store.(Excluding user damage and wear parts) |
| Included accessories | Filament sample, Micro SD card plus USB adapter, assembly tools, spatula, USB cable. |
| Bed temperature |
Maximum 70° C |
| Printer type |
KIT to assemble(After full assembly, it will no longer be possible to return the product) |
